MQ-6 Combustible Gas Propane / Butane / LPG / LNG Detector Sensor Module for Arduino

Please follow and like us:
Twitter
Visit Us
Follow Me
Follow by Email
SOCIALICON

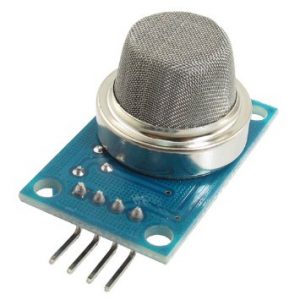

This sensor module utilizes an MQ-6MQ6 as the sensitive component and has a protection resistor and an adjustable resistor on board. The MQ-6 gas sensor is highly sensitive to LPG, iso-butane, propane and less sensitive to alcohol, cooking fume and cigarette smoke. It could be used in gas leakage detecting equipments in family and industry. The resistance of the sensitive component changes as the concentration of the target gas changes.

Features

  • Continuous Analog output
  • 3-pin interlock connector
  • Low cost and compact size



Specification:

  • Color: Blue + Silver
  • Material: PCB board
  • High quality double panel design, with power and TTL signal output indicator
  • With DO switch signal (TTL) output and AO analog signal output
  • TTL output effective signal for low level (when output lower than usually the signal light, can be directly meet SCM or relay module)
  • Analog output voltage: 0~5V, the higher concentration, the higher voltage
  • High sensitivity for the propane and butane, LPG, LNG detection
  • There are four screw holes for positioning
  • Product size: 32mm (L) x 20mm (W) x 22mm (H)
  • Long service life and reliable stability, fast response and recovery characteristics
  • Working voltage: 5V
  • Suitable for home / industry LPG, propane, butane, LNG detection using
  • Before use, please heat the board for about 20 seconds





 buy_at_amazon.in  Buy Now
