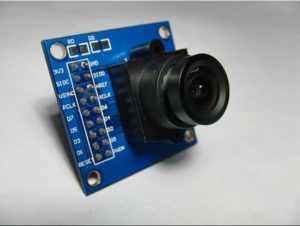

OV7725 Camera Module STM32 Driver Chip Integrated E-learningOV7725 Camera Module STM32 Driver Chip Integrated E-learning

Description:

  • IO voltage: 1.7V to 3.0V (internal LDO to nuclear power 1.8V);
  • Power consumption: 120mV/65fpsVGA, YUV;
  • Sleep <20uA;
  • Operating temperature: -20oC to 70oC;
  • Stability working : 0oC to 50oC;
  • The output format: (10bit  or 8bit) YUV/YCbCr4:2:2RGB565/555/444GRB4:2:2Raw RGB Data
  • Optical size: 1/4″
  • Angle of view: 25o
  • Signal to noise ratio: 50dB;
  • Dynamic range: 60dB;
  • Browse mode line by line;
  • Electronic exposure of 1 to 510 lines;
  • The pixel area: 6.0um*6.0um;
  • Dark current: 40mv/s at 60 oC
  • Photosensitive array: 640*480;
  Buy Now
