Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor for Arduino

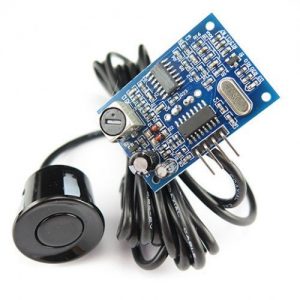

External Cable JSN-SR04T – DC 5V Waterproof Ultrasonic Module Distance Measuring Transducer Sensor Module

There are many ultrasonic ranger module on the market, but sometimes, these kind of sensor needs to work in conditions more than the Lab. This water proof ultrasonic sensor meets this requirement. It has a good performance and almost the same usage of HC-S04 module.

Features:

  • small size, easy to use
  • low voltage, low power consumption
  • high accuracy
  • strong anti-jamming
  • integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Specification:

  • Working voltage: DC 5V
  • Static working current: 5mA
  • Working current: 30mA
  • Acoustic emission frequency:40KHz
  • Wiring:+5V(positive); Trig(control); Echo(receive); GND(cathode)

Connection with arduino:

  • 5V:5V Suply
  • Trig:D12
  • Echo:D13
  • GND:GND

Application:

  • Horizontal distance messurement
  • Obstacle avoidance, automatic control
  • Traffic control
  • Security, industrial control
