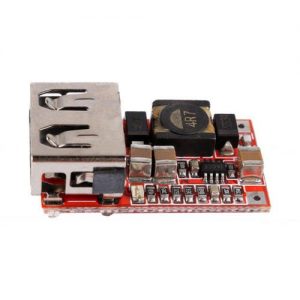

DC 6-24V 12V/24v to 5V USB Output charger step down Power Module Mini DC-DC Step Up Boost Module Power Adjustable buck Converter

Properties:

  1. non-isolated buck module (BUCK) synchronous rectification
  2. Input voltage: DC 6-24V
  3. Output voltage: 5.1-5.2V
  4. Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation.
  5. Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
  6. Switch frequency: 500KHz
  7. Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
  8. Output indicator: Output voltage indicator is red
  9. Operating temperature: Industrial grade (-40 ° to + 85 °) (the higher the ambient temperature, the lower the output power)
  10. Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
  11. Full load temperature: 30 °C
  12. Static current: 0.85 mA
  13. Load regulation: ± 1%
  14. Voltage regulation: ± 0.5%
  15. Dynamic response speed: 5% 200uS
  16. Output short circuit protection: Yes, but please do not short circuit for a long time
  17. Input reverse polarity protection: Yes, there is reverse polarity protection diode
  18. Connection mode: Soldering
  19. Input mode: Soldering
  20. Output mode: USB
