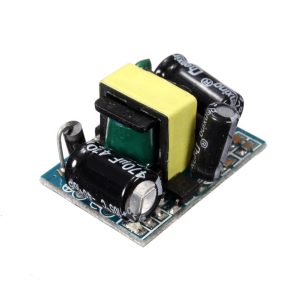

AC-DC 12V 450mA 5W Power Supply Buck Converter Step Down Module

Step Down Module with temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC12V output

Specifications:

  • Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
  • Input current: 0.0273A(AC110V) 0.014A(AC220V)
  • Input Inrush Current: 20A
  • Output voltage: DC 12V (+ / – 0.2 V)
  • Output current 500 mA
  • Operating temperature -20~60Deg.C
  • Relative humidity 40-90%RH
  • Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV
  • Output power:0-6W(DC current)
  • Output efficiency: 80%
  • Switch machine overshoot: MAX 10%
  • Output voltage rise time: MAX 100MS
  • Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery
  • Output over power protection:YES ,recovery:Lock, restart after recovery
  • Short-circuit protection: YES, automatic recovery after problem solved
  • Temperature protection: YES,recovery:Lock, restart after recovery
  • Overcurrent protection: YES,recovery:Lock, restart after recovery
  • Size: 3 x 2 x1.8cm
