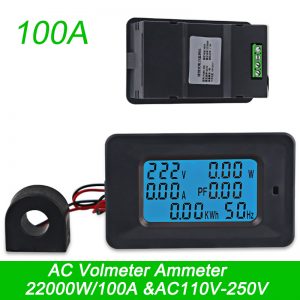

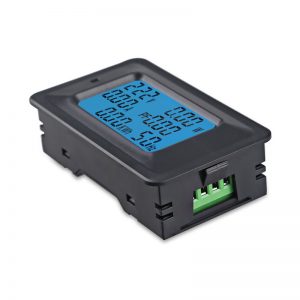

AC 22000W 250V 100A Digital Voltage Meters Power Energy Voltmeter Ammeter Indicator Current Amps Volt Wattmeter PF Frequency Tester Detector

Feature:
  • Can display voltage , current , power , power factor , energy and frequency at the same time
  • Made of PC flam retardant material , which will be more safe for using ,Backlight control , short press to turn on/off backlight
  • Hold press for 3 second to enter the over-load power setting , hold press for 5 second , system reset , cumulative capacity turns zero , overload power setting restore default value
  • Voltage measurement range is AC 50-300V , current measurement range is 0.01-100A , frequency measurement range is 45-65Hz , energy measurement range is 0.01Wh-99999kWh
  • The volt amp power energy frequency panel monitor is designed with built-in CT , no need to buy separately , powered by power grid directly(AC 220V) , no need external power supply

Specifications:

  • Rated power: 100A/22000W
  • Power measuring range: 0.01W-22000W
  • The maximum current: 100A/20A
  • Working voltage: AC 110V-250V
  • Voltage precision: ±1%
  • Current precision: ±2%
  • Power precision: ±2%
Package Include:

1x AC 110-250V Voltmeter Ammeter
