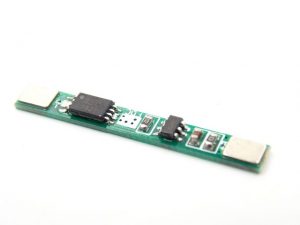

3.7V 3A li-ion BMS PCM battery protection board PCM for 18650 lithium ion li battery

The BMS is used for li-ion battery without balancing function

Features:

  • high-accuracy voltage detection circuit;
  • terminal of the charger using high voltage device;
  • Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
  • MOS transistor can control the battery charge and discharge;

Parameter:

  • Over charge voltage: 4.25±0.05V
  • Over charge release voltage:4.23±0.05V
  • Over discharge voltage:2.54±0.1V
  • Maximal continuous charging current: 2A
  • Maximal continuous Discharging current: 2A
  • Over current protection: 3A
  • Size: L 40 * W 4 * T3 mm
  • Weight: 10g
