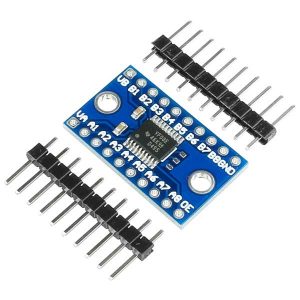

3.3V 5V TXS0108E 8 Channel Logic Level Converter Convert TTL Bi-directional Mutual Convert

Features

  • 8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically
  • Voltage level: 1.8V-6V
  • Dimension: 21mm x 15mm

How to Use

  • In the case of translating between 3.3V and 5V system:
  • VCCA connects to 3.3V power supply
  • VCCB connects to 5V power supply
  • GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
  • When Ax has TTL 3.3V input, Bx will get TTL 5V output
  • When Bx has TTL 5V input, Ax will get TTL 3.3V output
  • NO direction control required
